瓶子回收和清洗有助于降低成本和保护环境

1
2118

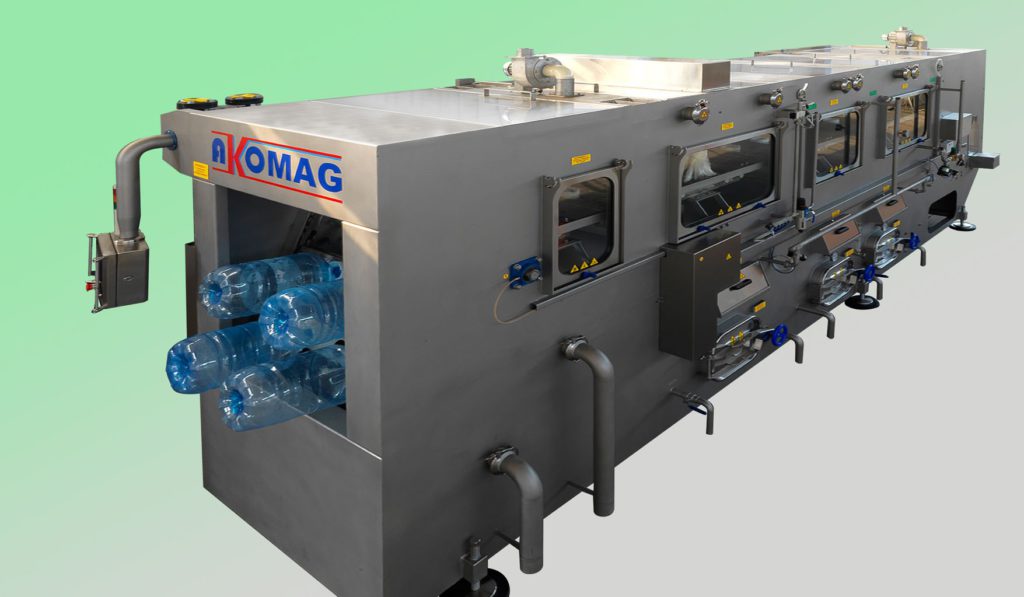

Monobloc Sira,由Akomag设计,用于清洗和消毒PET或PC加仑或其他大瓶,充满静水

使用洗瓶机可以回收空瓶,大大减少单向玻璃的用量,有利于环境和生产成本

Akomag是一家灵活、有活力的公司,其组织战略的基础是客户满意度、系统质量、辅助服务和技术创新。由于在灌装行业积累了丰富的经验,Akomag保证为客户提供最高产量、更容易控制、最低运营成本和使用优质材料制造的机器较长的工作寿命。生产范围的简单模块化结构有助于新功能和技术的逐步发展;多年来,该系统集成了特殊的洗涤和卫生站,自动控制工艺参数,安全系统,能源回收,减少排放,自动卫生的最重要的部分。机器的设计考虑到健康保护和风险预防,以及必要的噪音降低工具。这些传统的大型机器变得更加紧凑,以便于灌装生产线的空间优化。生产范围分为三个主要部分:自动洗瓶机,半自动洗瓶机,大型5-10升PC/PET瓶成套生产线。他们都有自己的模块化结构,这使客户能够根据他们的实际需要“建造”他们的机器。专为中小型企业设计的半自动洗瓶器;它们是玻璃洗瓶过程的第一级自动化。 A simple but functional washing cycle contributes to cut working costs (water, power supply, detergents) without jeopardizing the results. Automatic bottle washers are designed for medium-high production speeds. Designed to meet the needs of more demanding customers, attentive to the quality of the washing cycle and to the implementation of latest technologies, these machines ensure top reliability and functionalities with minimum maintenance. The washing cycle saves electric energy and minimizes consumptions, with relevant results in terms of cost-effectiveness and management. Thanks to sophisticated and reliable control systems, a single user can remotely control the whole washing cycle, and monitor operation, speed and consumption. Even in this case, the modular system and special versions of it provide for top flexibility. Sira machines and complete lines for washing 3-5 gallon or 5-10 litre bottles in PC or PET can be supplied as stand-alone units or they can be integrated in a complete washing, filling and capping line.

Akomag的喷雾和刷涂系统保证了Sira CM整体的有效清洗,旋转喷嘴在5bar下工作

一个节省空间的整体的

Sira Monobloc专为用不同尺寸和形状洗涤和消毒塑料加仑容器,用于随后用水填充。Akomag开发的洗涤循环可以适应客户的生产需求。特殊喷涂装置保证有效洗涤。特殊(穿透)旋转喷嘴通过高压(5巴)清洗容器的内壁,而尼龙刷子提供清洁瓶外壁。只需输入从控制键盘处理的容器类型,即可自动将机器自动调整到不同的瓶子尺寸。操作员可轻松抵达MonoBloc旁边的不锈钢控制板。控制板配有触摸屏,显示线路的所有功能,以及操作参数和警报。全自动夹板,全部采用不锈钢制成,配备了气动系统,颈部通过颈部握住容器以拆下盖子。即使是用于未加载容器的选择和拒绝系统也可用。然后通过逆变器控制的泵填充容器。 A new valve provides for a laminar water flow and the absence of contact between valve and container neck. The filling is controlled by a special metering device that ensures filling accuracy. Finally, the monobloc is equipped with a capper, comprising soundproof vibrating hopper and a descent chute with pick-off dispenser; the bottles are closed by a tilted closing belt with adjustable pressure. All adjustments are automatically controlled via control board.
